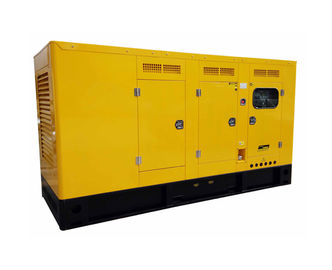

China heavy duty power 200kw genset Ricardo Engine 250 kva silent diesel generator
Main specification
a,3-Phase, 50Hz / 60Hz , 120V, 220V / 380V (Also Can Be Made According To Customers’ Special Requirements)
b,12V/24V DC start motor and storage battery
c,Brushless, Self-excited, IP21-23, insulation class H alternator
d, 40°C radiator as standard, 50°C is optional
e,Key start panel control system as standard, digital auto-start panel is optional
f,All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Data of diesel Generator Set
| Prime Power |
250kva |
Standby Power |
275kva |
| Rated Speed |
1500rpm |
Output Frequency |
50hz/60hz |
| Phase |
3 |
Rated Voltage |
400v |
| Fuel Consumption |
23L |
Fuel Tank capacity |
10 hours |
| Voltage Regulation Rate |
≤±1% |
Random Voltage Rate |
≤±1% |
| Frequency Regulation Rate |
≤±5% |
Random Frequency Variation |
≤±0.5% |
Alternator Specification
| Alternator Brand |
China Stamford,Mecc-alte,Marathon |
| Exciter Type |
Brushless, Self-excited |
| Rated Speed |
1500/1800rpm |
| Rated Frequency |
50/60hz |
| Phase |
three or single |
| Rated Voltage |
400V (Available with customer requirements) |
| Power |
0.8 |
| Voltage Adjust Range |
≥5% |
| Protection Grade |
IP22 |
| Insulation Grade |
H |
Digital Control Panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
