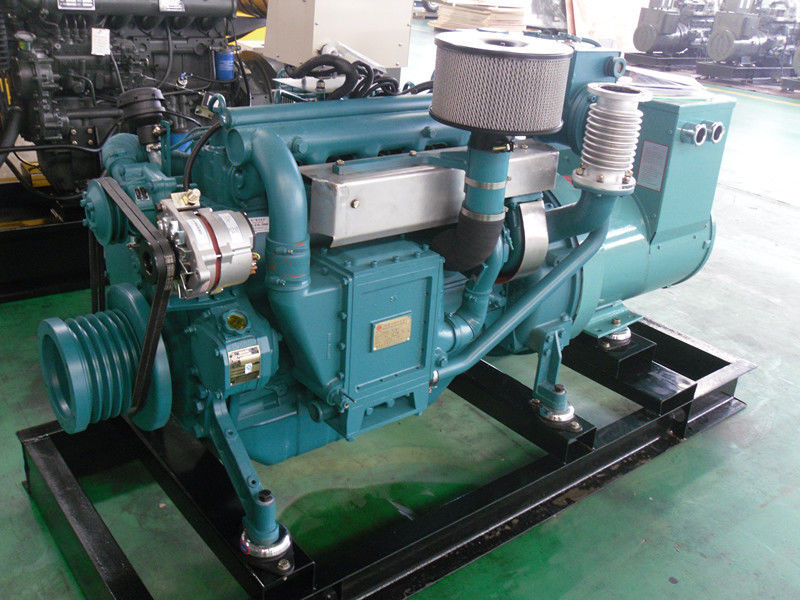

100kw Marine Diesel Generator / 50Hz 1500rpm Deutz Marine Generator
Quick Detail:
1.sea water cooled diesel engine
2.deutz engine model:TD226B-6C
3.marathon brushless ac alternator
4.ccs certificate
Genor Power Deutz series diesel generator setd adopt DEUTZ 226B series low power diesel engine made by Sino-Germany Joint-Venture Company in China.The DEUTZ engines are 4-cycle,water cooled, 24DVC working voltage for conrol system,adopt circumvolve fuel fiter&oil filter cleaner, Dry air cleaner,compact structure,fine quality,reliable capability
1.Specification of genset:
1) Genset model:GNRD100
2) Engine model:TD226B-6C
3) Alternator model:marathon
4) Prime power(kva/kw):125/100
5) Standby power(kva/kw):137.5/110
6) Rated frequency(HZ):50
7) Full-load diesel consumption(g/kw.h):198
8) BorexStock(mm):105x120
9) Engine displacement(mm):6.23
10) Inspiration:Turbo charger
11) No of cylinders:6
12) Arrangement of cylinders:Inline
13) Lube Volume(L):15
14) Net weight(kg):810
15) Dimensions(mm:L/W/H):1278X663X1091
2.Specification of DEUTZ engine:
1) Type:4-stroke,In-line;6-cylinder
2) Firing order:1=5-3-6-2-4
3) Cubic capacity(L):6.23
4) Exhaust temperture:620
5) Air coolant mass flow(m3/min):200
6) Coolant capacity-engine only(L):30
7) Area of air intake dischar geair:0.55
8) Specife consumption flubracation oil(g/h):1.63
9) Capacity of lubrication oil(L):16
10) Exhaust Sound Pressure at 1m from Exhaust Outlet -1500r/min -dBA:100
General Technical Data
1. Frequency: 50 & 60Hz
2. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire
3. Voltage: 120/207V,127/220V,220/380V, 230/400V, 240/415V, etc
4. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank
5. Monitoring meters and control switches
6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure
Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
