Panda 12kva marine boat genset diesel generator 10kw soundproof three cylinder direct injection

تصویر بزرگ : Panda 12kva marine boat genset diesel generator 10kw soundproof three cylinder direct injection

جزئیات محصول:

Place of Origin:	China
نام تجاری:	GENOR POWER
گواهی:	ISO9001:2008, CE
Model Number:	GNRM10
Product name:	ship marine generator
Alternator:	Brushless, self-excitation ,AVR
Engine type:	Three cylinder, direct injection, four stroke,water cooled
Rated Power:	10kw
Rated RPM:	1500rpm or 1800rpm
Frequency:	50Hz or 60Hz

پرداخت:

Minimum Order Quantity:	1 set
قیمت:	negotiable
Packaging Details:	Wooden package
Delivery Time:	within 15 days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	200 unit / month

مخاطب

توضیحات محصول جزئیات

برجسته کردن:

diesel engine generator set, diesel backup generator

diesel backup generator

Panda 12kva marine boat genset diesel generator 10kw soundproof three cylinder direct injection

The 12kva marine genset is designed with unique water cooled structure.The engine and muffler are cooled by externally circulated sea water or river water, reduce temperature in the compartment of the yacht.

Remote control panel with cable, complete protection, alarm and shutdown to high water temperature, low oil pressure, low/over speed, low/high AC/DC voltage, low/high frequency, etc.

The Marine Diesel Generator is widely used in excursion boats, yachts, fishing boats and other projects.

Generator Set	Model	GNRM10
	Rated power(KW)	10 / 11
	Rated voltage(V)	115/230 120/240
	Rated frequency(Hz)	50 / 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m) w/100% load	60
	Overall dimension	≤885x625x650
	(L×W×H)(mm)	≤885x625x650
	Overall weight(kg)	≤320
	Fuel tank capacity(L)	Share fuel tank with marine vehicle
	Type	Three cylinder, direct injection, four stroke,water cooled
	Bore×Stroke(mm)	75×84
	Rotation speed(r/m)	1500 /1800
	Governor system	Mechanical
	Starting mode	12V DC electric start
	Filter system	Water cooled air filter, fuel filter, oil filter
	Cooling type	External cooling by river water or sea water
	Heat exchanger(L)	13
	Muffler	Sea Water-cooled
	Fuel consumption(g/kw.h)	≤210
	Oil capacity(L)	4
Alternator	Rated power(KW)	10 / 11
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Single phase, three wire
	Number of pole	4
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%~105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF<50,THF<2%
	IP grade	IP23
Control panel	Control on power output	Remote cable electric switching ABB circuit breaker
	Installation	Remote cable connected
	Auto function	Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Advantage:

Special structure design, perfect portability
Reliable dynamic performance
Easy installation and connection.
Low noise running within 60dBA at 7meters.
Low fuel consumption .
Compact and attractive aesthetic outlooking.
15 months or 1200 running hours warranty, whichever comes first.
ISO and CE certificated.

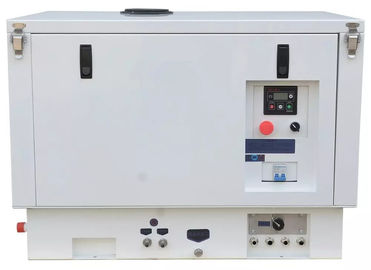

Panda 12kva marine boat genset diesel generator 10kw soundproof three cylinder direct injection 0

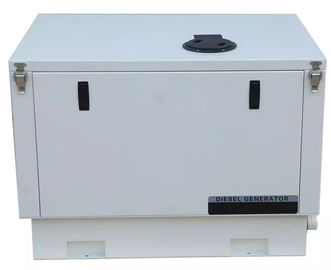

Panda 12kva marine boat genset diesel generator 10kw soundproof three cylinder direct injection 1

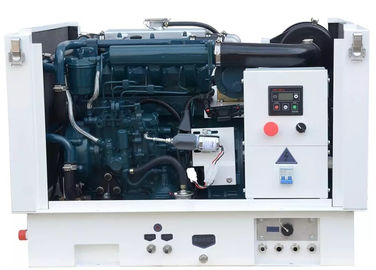

Panda 12kva marine boat genset diesel generator 10kw soundproof three cylinder direct injection 2
