Cummins Diesel Generator , Three Phase Brushless AC Generator

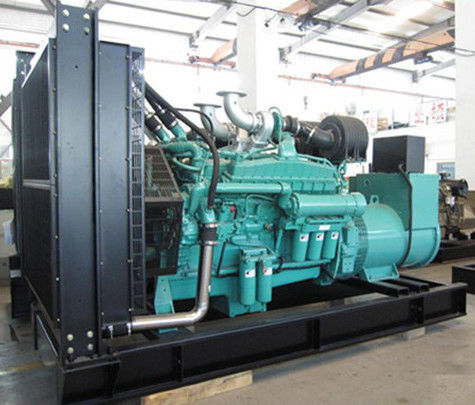

تصویر بزرگ : Cummins Diesel Generator , Three Phase Brushless AC Generator

جزئیات محصول:

Place of Origin:	China
گواهی:	ISO9001:2008, CE
Engine:	Cummins
Alternator:	Stamford, Leroy somer ,Marathon,Engga
Control Panel:	Smartgen, Deepsea,ComAp
Rated Power:	500kva
Rated RPM:	1500rpm or 1800rpm
Frequency:	50Hz or 60Hz
Rated Voltage:	120V/208V,220V/380V, 240V/415V

پرداخت:

قیمت:	negotiable

مخاطب

توضیحات محصول جزئیات

برجسته کردن:

genset diesel generator,cummins generator set

cummins generator set

500kva Generator With Cummins Engine

1. 500kva Cummins diesel engine KTA19-G3 with electric Governor
2. AC Brushless , self-exciting Stamford alternator HCI544D
3. DSE7320 digital control panel

Cummins Diesel Generator , Three Phase Brushless AC Generator

Specifications:

1.Main technical data of gensets
1.1	Model	GNRC500
1.2	Prime power	500kva
1.3	Prime voltage	254V/440V
1.4	Speed	1800 rpm
1.5	Weight	3950kg
1.6	Overall dimension	3150×1000×2150mm (just for reference)
2.Main technical data of engine
Cummins engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling.
2.1	Brand	CUMMINS
2.2	Model	KTA19-G3
2.3	Prime power	463KW
2.4	Governor type	Electronic
2.5	Configuration	4 cycle , 6 cylinder in line
2.6	Cooling method	By heater exchanger
2.7	Bore/Stroke	159×159 mm
2.8	Displacement	19.0L
2.9	Starting method	Electric
2.10	Fuel consumption	203g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	Stamford
3.2	Model	HCI544D
3.3	Prime power	500kva
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	254V/440V
3.6	Frequency	60 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H

control plane

Controller Brand: Deep Sea / Smartgen (Digital and intelligent)

LED Screen and touch Buttons’

Main Functions,

1- Display loading power, voltages, currencies, frequency, speed, temperatures, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Shut down when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc

Warranty policy

Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
