HEPA Filter Esp removal Oil Mist Collector extractor air cleaning element electric power
How Oil Mist Removal Works
1. Oil mist is removed at source
2. Oil mist is removed from the air by centrifugal impaction
3. Dust ,smoke and fume can be removed
4. Clean oil is returned to machine
5. Clean air is returned to workplace
Why should be installing oil mist purifier ?
1.Oil mist is hazardous to the human respiratory system and skin health .
2.Oil mist causes slippery floors , it also will lead to failure of the machine's circuit system and control system
3. Oil mist can lead to coating of ventilation pipes and workplace having the potential fire risk.
4. Reduce energy and heating costs by recycling clean air back into the factory.
5. The oil mist purifier can recycle the cutting fluid of the machine tool and reduce its loss
Oil mist collector also known as oil mist eliminators, efficiently remove oil mist, coolant mist, fume and steam in machine and manufacturing facilities to ensure a clean and safe work environment .
It uses centrifugal separation and high-efficiency filtration technology.
The oil mist is drawn into the unit , it passes through the split cone and many stage filtration devices to filter out stray solid particles . Strong Centrifugal force pushes oil to the unit's outer case where it drains back to the machine for re-use or collection and clean air is returned to the workshop through the top of the unit.
After the oil mist is treated by the system, it is effectively collected and purified, and the collection and purification efficiency is as high as 98% or more.
| Model |
GFT500 |
GFT750 |
GFT1500 |
GFT2200 |
| Voltage |
50 / 60Hz , 3phase , 120V, 220V, 380V,400V ,415V |
| Power(kw) |
0.5 |
0.75 |
1.5 |
2.2 |
| Air Volume(m3/h) |
500 |
800 |
1200 |
1500 |
| Air pressure(pa) |
1100 |
1200 |
1800 |
1800 |
| Noise(Db) |
58 |
65 |
68 |
68 |
| Capture efficiency |
99.97% |
| Suction diameter(mm) |
Φ98 |
Φ123 |
Φ148 |
Φ198 |
| Dimensions(L*W*H)mm |
650*390*500 |
710*430*530 |
860*450*550 |
910*530*640 |
Application :

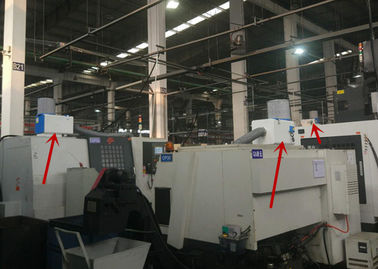

The oil mist collector is a collection and purification device designed for various types of processing machine tools.
It is widely used in CNC lathes, washing machines, grinding machines. hobbing, milling and edging machine tools, vacuum pumps, spray test chambers, electric discharge machining, spark eroding; turning; food spraying ,industrial washing processes, CNC machining centers and other processing equipment
