Railway Arc diesel Generator Welding Machine Miller 400amp 500amp 2 Operators Electrode

تصویر بزرگ : Railway Arc diesel Generator Welding Machine Miller 400amp 500amp 2 Operators Electrode

جزئیات محصول:

Place of Origin:	China
نام تجاری:	Genor Power
گواهی:	ISO9001:2008, CE, CCC
Model Number:	GNAW500

پرداخت:

Minimum Order Quantity:	1 Set
قیمت:	negotiable
Packaging Details:	Wooden Package / Plywood case
Delivery Time:	Within 20 days
Payment Terms:	T/T ,L/C ,Western Union, MoneyGram, D/A
Supply Ability:	200/sets per Month

مخاطب

توضیحات محصول جزئیات

Product name:	Diesel engine welding generator	Engine type:	4 stroke , 4 cylinders ,Diesel engine
Welding Current:	500 Amp	Cooling system:	water cooled
Excitation Type:	AVR Brushless Self exciting	Engine RPM:	1500rpm to 1800rpm
Frequency:	50Hz or 60Hz	Protection Class:	IP23
Start system:	Electric start
برجسته کردن:	engine driven welder generator,genset welder generators , genset welder generators

Miller 400amp 500amp Railway Arc Diesel Welder Generator 2 operators electrode 8.0 mm

The 500amp diesel welder generator is equipped with diesel engine driven welding machines with MMA/TIG/FCAW function, and Strong auxiliary power:30 KW output for three-phase, 7KW output for single-phase .

it use advanced inverter soft switch technology, PWM control technology, and negative feedback control technology , enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.

Advange:

1. Electric Starter ensures easy starting

2. Separate welding range with fine adjustment in each range

3. Great Welding Performance

4. Auxiliary power while welding

5. 500 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding

6. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.

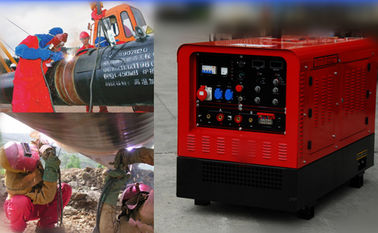

Railway Arc diesel Generator Welding Machine Miller 400amp 500amp 2 Operators Electrode 0

Welding Processes	MMA			TIG			FCAW
Open Circuit Voltage (V)	75			75			75
Current Range (A)	30-500			30-500			30-500
Welding Current (A)	387	430	500	387	430	500	387	430	500
Welding Voltage (V)	35.5	37.2	40	25.5	27.2	30	33.3	35.5	39
Duty Cycle	100%	80%	60%	100%	80%	60%	100%	80%	60%
External Characteristic Curve	Drop Characteristic			Drop Characteristic			Flat Characteristic
Generator output
Power	20Kw
Excitation Type	AVR Brushless Excitation
Frequency	50Hz or 60Hz
Phase	Three Phase					Single Phase
Output Voltage/Power	AC 400V/20Kw					AC 230V/6Kw
Engine
Engine type	4 stroke , 4cylinder , direct injection , heavy duty diesel engine
Fuel	Diesel
Rated Power	26Kw
Rated Speed	1500 RPM
Low Temperature	Pre-heated Start
Warning Type	Water Temperature /Oil Pressure/Battery Voltage
Fuel Capacity	60L
Cooling Method	Water-cooled
Fuel Consumption	5.6L/hr
Complete appliance
Weight	710kg
Dimension(mm)	1500×800×1100
Protection Class	IP23

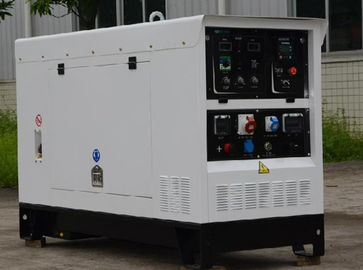

Railway Arc diesel Generator Welding Machine Miller 400amp 500amp 2 Operators Electrode 1

Railway Arc diesel Generator Welding Machine Miller 400amp 500amp 2 Operators Electrode 3

Railway Arc diesel Generator Welding Machine Miller 400amp 500amp 2 Operators Electrode 4
