Silent 500A 400Amp Mig Tig DC Welder Diesel-powered Integrated Generator and Welding Machine

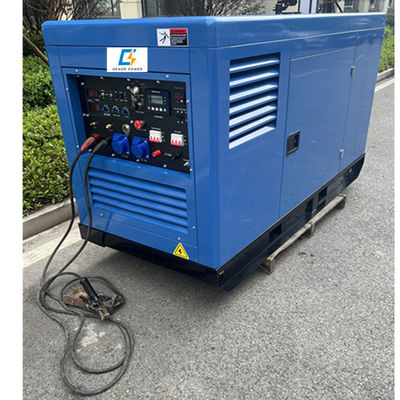

تصویر بزرگ : Silent 500A 400Amp Mig Tig DC Welder Diesel-powered Integrated Generator and Welding Machine

جزئیات محصول:

محل منبع:	چین
نام تجاری:	GENOR POWER
گواهی:	ISO , CE, EPA
شماره مدل:	ONRWL400

پرداخت:

مقدار حداقل تعداد سفارش:	1 ست
قیمت:	USD$4139 to USD$7225
جزئیات بسته بندی:	بسته چوبی / تخته سه لا
زمان تحویل:	در عرض 20 روز
شرایط پرداخت:	T/T ، L/C ، Western Union
قابلیت ارائه:	200/مجموعه در هر ماه

مخاطب

توضیحات محصول جزئیات

نام محصول:	400A ژنراتور جوش دیزل	نوع موتور:	enigne وظیفه سنگین صنعتی
جریان جوشکاری:	500 آمپر	محدوده جریان جوش:	20-500A
ولتاژ جوش:	15 - 50 ولت	سیستم خنک کننده:	خنک شده
چرخه وظیفه:	60 ٪	حالت جوش:	استیک، میگ، تیگ
برنامه:	ساخت و ساز، معدن، جوش لوله
برجسته کردن:	400Amp diesel welding machine,500A MIG TIG welder generator,silent diesel welder with generator , 500A MIG TIG welder generator , silent diesel welder with generator

Silent 500A 400Amp Mig Tig DC Welder Diesel-powered Integrated Generator and Welding Machine

The Engine Driven Welders incorporate a diesel fueled engine to produce power for Stick, TIG, MIG and Flux-Cored welding. They are typically transported on a truck or trailer and are primarily used outdoors.

The diesel welding plant adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology, enjoying excellent dynamic quality and welding performance within full voltage/current regulation range.

Welding Specifications
Welding Current Range (A)	20A - 400A
Rated welding current	450A
Operating voltage	> 36V
No-load voltage	70V - 90V
Generator Output
Excitation Type	AVR Brushless Excitation
Frequency	50Hz
Phase	Three Phase \| Single Phase
Output Voltage/Power	AC 380V/15Kw \| AC 220V/5Kw
Engine
Engine type	4 stroke, 4 cylinder, direct injection, heavy duty diesel engine
Fuel	Diesel

Technical Specifications

Rated welding current, (at Pn-60%), not more than - 400 A
Rated operating voltage, not less than - 36V
Welding current regulation limits, not less than - 60A, not more than - 400A
No-load voltage, not less than - 70V, not more than - 90V
Fuel tank capacity, not less than - 60L, not more than - 120L
Pump efficiency, not less than - 70%

Auxiliary Power Generator

Power, not more than - 4 kW
Rated voltage, (at 50 Hz), no more than - 230V

Engine Specifications

Engine type- diesel
Engine power, not less than - 30/40 kW/hp
Rotation speed, not more than - 1800 rpm
Engine cooling - liquid/air
Climatic version - N1

The trailer-chassis is designed for operation by vehicles having a traction device according to GOST 2349, electrical outlets according to GOST 9200, devices for attaching the safety chains of the trailer, as well as an additional rear and front stop to maintain in a horizontal position.

Additional Equipment

Ballast rheostat
Welding cables, an electrode holder, a welder's shield, a "Vector" type cutter length 510 mm are designed for manual cutting of steels with a thickness from 3 to 300 mm, a gas and oxygen reducer
Propane and oxygen hoses of 20 m each
Complete set of an extended set of tools for maintenance
Additional tool box
Preheating system for starting the welding unit at ambient temperature below -25°C
Shelters of the welding site from environmental influences
Power tools for machining edges of welded elements and welded joints
Light alarm
Automatic emergency protection system
Built-in auxiliary generator, - 220/380 V, to VA - 4-7, AC (for powering power tools and consumers with an active load - incandescent lamps, heaters, soldering irons)
A lamp for carrying out work at night
Tire pumping device
Electric fuel level indicator
Hour counter
Cables for remote start from an outside source
Device for drying electrodes
Anti-rollback stops, -2 pcs
Socket ONC- VN-1-7/30- P1
Spare wheel
