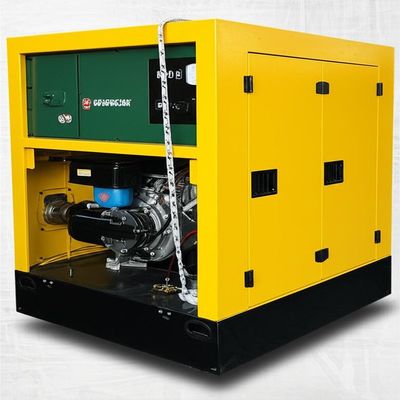

400A Diesel Welder Generator with Water Cooled System AVR Brushless and Electric Start

تصویر بزرگ : 400A Diesel Welder Generator with Water Cooled System AVR Brushless and Electric Start

جزئیات محصول:

محل منبع:	چین
نام تجاری:	GENOR POWER
گواهی:	ISO , CE, CCC
شماره مدل:	ONRWL400

پرداخت:

مقدار حداقل تعداد سفارش:	1 ست
قیمت:	USD$4139 to USD$7225
جزئیات بسته بندی:	بسته چوبی / تخته سه لا
زمان تحویل:	در عرض 20 روز
شرایط پرداخت:	T/T ، L/C ، Western Union
قابلیت ارائه:	200/مجموعه در هر ماه

مخاطب

توضیحات محصول جزئیات

نام محصول:	400A ژنراتور جوش دیزل	نوع موتور:	enigne وظیفه سنگین صنعتی
جریان جوشکاری:	500 آمپر	سیستم خنک کننده:	خنک شده
نوع تحریک:	AVR بدون برس	ولتاژ باز:	80 V
طبقه حفاظت:	IP23	سیستم شروع:	شروع برقی
برجسته کردن:	Water Cooled Diesel Welder Generator,AVR Brushless Diesel Welder Generator,Electric Start Diesel Welder Generator , AVR Brushless Diesel Welder Generator , Electric Start Diesel Welder Generator

MULTI WELD SYSTEM Twin Holders Diesel Engine Welding Plants 450-500 Amperes

Industrial heavy-duty diesel engine driven welding machine with strong auxiliary generator and mobile trailer. Features advanced inverter soft switch technology, PWM control technology, and negative feedback control technology for excellent dynamic quality and welding performance across full voltage/current regulation range.

Key Specifications

Parameter	Specification
Welding Current Range	20A - 400A
Rated Welding Current	450A
Operating Voltage	> 36V
No-load Voltage	70V - 90V
Generator Output	AVR Brushless Excitation
Frequency	50Hz
Phase	Three Phase \| Single Phase
Output Voltage/Power	AC 380V/15Kw \| AC 220V/5Kw
Engine Type	4 stroke, 4 cylinder, direct injection heavy duty diesel
Fuel	Diesel

Technical Specifications

Rated welding current (at Pn-60%): ≤ 400A

Rated operating voltage: ≥ 36V

Welding current regulation limits: 60A-400A

No-load voltage: 70V-90V

Fuel tank capacity: 60L-120L

Pump efficiency: ≥ 70%

Auxiliary Power Generator

Power: ≤ 4 kW

Rated voltage (at 50 Hz): ≤ 230V

Engine Details

Type: Diesel

Power: ≥ 30/40 kW/hp

Rotation speed: ≤ 1800 rpm

Cooling: Liquid/air

Climatic version: N1

Trailer Specifications

Chassis designed for operation with vehicles having traction device according to GOST 2349, electrical outlets per GOST 9200, safety chain attachments, and front/rear stops for horizontal positioning.

Included Equipment

Ballast rheostat
Welding cables, electrode holder, welder's shield
"Vector" type cutter (510mm) for steel cutting (3-300mm thickness)
Gas and oxygen reducer
Propane and oxygen hoses (20m each)
Extended maintenance tool set
Additional tool box
Preheating system for cold starts (below -25°C)
Welding site shelters
Power tools for edge machining
Light alarm system
Automatic emergency protection
Built-in auxiliary generator (220/380V, 4-7kVA)
Night work lamp
Tire inflation device
Electric fuel level indicator
Hour counter
Remote start cables
Electrode drying device
Anti-rollback stops (2 pcs)
Socket ONC-VN-1-7/30-P1
Spare wheel
