4 pole circuit breaker Gsm modem telecom Perkins Diesel Generator stamfrod alternator

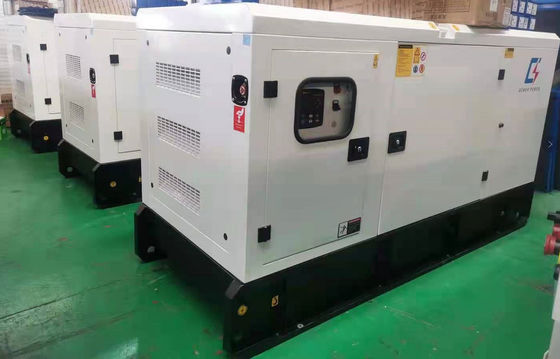

تصویر بزرگ : 4 pole circuit breaker Gsm modem telecom Perkins Diesel Generator stamfrod alternator

جزئیات محصول:

محل منبع:	چین
نام تجاری:	Perkins
گواهی:	ISO9001:2008, CE ,EPA
شماره مدل:	GNRP20

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	USD$4000 TO USD$7000
جزئیات بسته بندی:	بسته چوبی / تخته سه لا
زمان تحویل:	ظرف 15 روز
شرایط پرداخت:	T/T ، L/C ، Western Union ، MoneyGram
قابلیت ارائه:	200/مجموعه در هر ماه

مخاطب

توضیحات محصول جزئیات

نام محصول:	دیزل ژنراتور 20kva Telecom	مارک موتور:	موتور پرکینز
قدرت اصلی:	20kva	سیستم خنک کننده:	موتور آب خنک
متناوب:	AVR بدون براش خود هیجان انگیز	روش شروع:	استارت خودکار الکتریکی
ولتاژ:	380 ولت	فرکانس:	50 هرتز
کلاس حفاظتی:	IP23
برجسته کردن:	Perkins Diesel Generator with GSM modem,4 pole circuit breaker for generators,Stamford alternator for Perkins generators , 4 pole circuit breaker for generators , Stamford alternator for Perkins generators

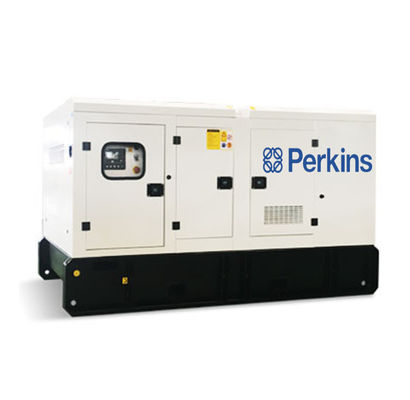

4 Pole Circuit Breaker GSM Modem Telecom Perkins Diesel Generator Stamford Alternator

The Perkins diesel generator is equipped with Perkins diesel engine with brushless alternator, AVR and Deepsea control panel. 24V DC start motor and storage battery.

Key Features

Genuine UK Perkins industrial diesel engine
Radiator 50°C max, fans are driven by belt, with safety guard
Choice of manual/auto and AMF control panels and protection systems
Digital auto-start panel
Anti Vibration Suspension Absorber
Dry type air filter, fuel filter, oil filter
10-hour operation base tank
Mould case circuit breaker

20kVA Perkins Generator Specifications

Genset Model	Prime Power	Standby Power	Engine	Fuel Consumption (g/kwh)	Cylinder No.	Displacement (L)	Bore X Stroke (mm)
GNRP10	7 KW \| 9 KVA	8 KW \| 10 KVA	403A-11G1	≤252	3	1.131	77*81

Engine Features

Genuine UK Perkins industrial diesel engine
Multi-cylinder in-line or veer engine, 4-stroke, direct injection
Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
Machinery or electronic governing
Fuel injection pump
Electric motor starting system
Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
Low discharge, and low fuel consumption
Installed conveniently and maintain easily

Alternator Features

World famous brand AC alternator: Stamford
Brushless, 4 poles, rotation magnet
IP23(NEMA1) enclose is standard for all industrial alternators
H class insulation system
AVR self-regulated, voltage regulation rate: ≤±1%
Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
Wide range of flange adaptors and single bearing disc coupling
Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Digital Control Panel

Controller Brand: Smartgen, Deepsea
Control Panel: English interface, LED screen and touch buttons.

Main Functions:

Display loading power, voltage, current, frequency, speed, temperature, oil pressure, running time etc.
Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
